Belt Applicator

Belt applicators are precise machines for rapid label application across industries. Vacuum belt applicators apply labels at high speeds, up to 180 PPM. They handle diverse materials, including plastics, metals, and cardboard. These applicators have a label positioning accuracy of ±0.5 mm. Features include automated label changes and PLC interfacing for print control. Industries include food, pharmaceutical, and manufacturing. Accurate labeling supports regulatory compliance and efficient logistics. Further study will show how these systems adapt to unique production needs.

Key Types

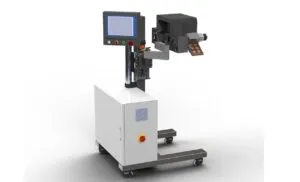

Key types of belt applicators vary based on their design and application. Vacuum belt applicators are designed for high-speed labeling, utilizing vacuum belts to transport labels to products, achieving rates of up to 120 packages per minute. Tape belt applicators integrate a tape coater system for applying tapes to cloth or paper wide belts, with a shear cutter confirming precise tape length. Print and apply systems combine label printing with belt-based application and are often paired with Evolabel D43 printers.

QuickTamp applicators specialize in tamper-evident labeling, essential in meeting pharma and food safety standards, and are designed to guarantee consistent results across various packaging materials. Industrial specialized applicators are custom-built for bulk materials, achieving high throughputs of up to 180 packages per minute. Application accuracy and maintaining proper label orientation are key factors of belt applicators.

Technical Specifications

To achieve peak performance, a detailed look at the technical specifications of belt applicators is necessary. Label dimension ranges vary, accommodating labels from 30×30 mm to 118×150 mm, with height ranges extending from 80–356 mm. These applicators maintain label positioning accuracy of approximately ±0.5 mm and use vacuum belts synchronized with conveyor speeds for precise alignment.

Belt applicators achieve peak performance with precise alignment and label positioning accuracy.

Performance metrics include belt speeds up to 95 m/min, yielding label rates potentially reaching 120 PPM. Air supply requirements typically call for 6 bar pressure. System integration features CANopen communication standards and user-friendly touch screen interfaces. These systems are engineered to handle various:

1. Different label sizes.
2. Line speeds.
3. Air pressure.

The choice of label material and *adhesive types* directly influences performance outcomes. Compatible with thermal and inkjet printers, these applicators offer plug-and-play mechanical and electrical interfaces. *Adhesive types* influence label adhesion quality, while the *label material* impacts the durability through the application process, consequently, an engineering consideration.

Industry Applications

Belt applicators demonstrate diverse sector usage due to their adaptability. The method employed to apply labels caters distinctly to the physical properties of the material being labeled. These systems are engineered to handle specific requirements, ranging from delicate pharmaceutical items to heavy and potentially hazardous materials, facilitating precise and consistent label application across manufacturing and distribution.

Diverse Sector Usage

Diverse sector usage of belt applicators stems from their ability to accurately place labels across various industries. Market penetration is observed in sectors demanding precision and speed. Evolabel’s belt applicators address diverse needs, evidenced by positive customer feedback. Their modular design and adaptability contribute to their widespread adoption. The flexibility of belt applicators allows integration into different production configurations.

Specifically, the systems can handle:

• Packages of varying sizes from small to large
• High-volume production with sanitation compliance
• Synchronized printing and application to prevent backlog

Their adaptability to shifting demands, such as top and base labeling, further extends their utility. The systems offer streamlined solutions.

Specific Material Labeling

Specific material labeling in industry applications hinges on material flexibility in label transport, high-speed labeling for perishables, adhesive compatibility across materials, and precision handling of odd shapes. Vacuum belt systems stabilize label transport to handle materials of varying sizes and compositions, including plastics, metals, and cardboard. Efficiently processes up to 180 packages per minute, ideal for perishable food products, while maintaining accuracy via stepper-driven mechanisms.

Varied surface textures require tailored solutions, integrating pressure-sensitive adhesives for rigid containers and hot melt glue for corrugated boxes. Adhesive selection is critical; air-blow and tamp combinations apply labels to uneven surfaces on shrink-wrapped products, while pre-coated adhesives guarantee stability on curved tubes and jars.

Efficiency Features

Efficiency features of the belt applicator markedly enhance its operational capabilities. Automated label changes reduce delays between production runs. Minimized operational pauses and adaptable application dynamics further improve throughput in diverse settings.

Automated Label Changes

Automated label changes are efficiency features involving computer-controlled presets, which enable rapid switching between label types and container configurations using saved parameters. The programming interface allows operators to select from a range of pre-configured settings, while user permissions guarantee controlled access to system parameters. This capability is designed for operational effectiveness, simplifying maintenance and changeovers, and reducing operational costs. Multiple preset storage further enhances efficiency by accommodating diverse product lines.

The system minimizes downtime when switching between product runs. Modular designs enable quick reconfiguration for diverse packaging needs.

• Switch from applying labels with a barcode
• To applying labels with an expiration date
• To applying labels with a QR code

This feature streamlines workflows and eliminates risks of manual inconsistencies. Integrated OT system communication dynamically adds variable data to labels.

Minimized Operational Pauses

To minimize operational pauses, high-speed label application processes up to 120 packages per minute, optimizing line throughput with the capacity for real-time label application from multiple directions without halting production, and automated label transfer precision matches conveyor speed to guarantee accurate label placement, reducing rework downtime with external signal-based application to avoid manual timing errors.

Quick-roll replacement minimizes label supply change delays. Sealed edges protecting against debris contamination extend operational durations. V-guides maintain belt alignment, averting wear-related stoppages. A tight 0.5m gap requirement between packages further assures uninterrupted flow. Temperature-resistant materials withstand harsh environmental conditions. System integration compatibility supports streamlined operation for end-to-end efficiency. Strategic scheduled maintenance facilitates continuous functionality, while predictive analysis anticipates potential issues.

Adaptable Application Dynamics

Adaptable application dynamics integrate motion flexibility and dynamic interaction modeling for various efficiency features. Horizontal motion reaches speeds of 2540 mm/s, while vertical motion achieves 1270 mm/s. Adjustable mounting via T-slots or aluminum channels allows for application customization. Alignment optimization and friction reduction are due to linear bearings and plastic rollers. Moreover, operational setup versatility, offering both pusher and linear configurations, provides additional flexibility.

Dynamic interaction modeling utilizes bonded-particle (BP) belt models to simulate interactions with bulk materials, proving essential for proficient material handling. The actuators facilitate force control managing loads up to 500 lbf in either:

• Horizontal motion paths.
• Vertical motion paths.
• Customizable motion paths.

The ability to adapt the force control guarantee consistent and dependable performance.

Integration With Production Lines

Integration with production lines is achieved via key features such as seamless compatibility with Evolabel D43/T43 printers, vacuum belts synchronized with conveyor speeds for precise labeling, and custom mounts, or UII flexible T-base stands, that enable flexible line integration. The all-electric design (PowerMerge™) further simplifies the integration process by eliminating the need for factory air.

Efficient line placement involves considering multiple factors intrinsic to system design. The modular setup supports various application methods (tamp/blow, vac/blow), adapting to different product and packaging requirements. Compatible with diverse production lines across food, pharmaceutical, and manufacturing industries, the applicator utilizes vacuum belt synchronization to accommodate product speed variations. The applicator adapts to custom conveyor configurations via modular setups to enhance operational flexibility. This guarantees proper feed timing to maintain high-speed throughput, making it a suitable solution for many manufacturing environments.

Common Use Cases

Common use cases for belt applicators span across various industries, showcasing the system’s versatility and adaptability. In food and beverage, they achieve precise package labeling at high speeds, even for lightweight items. Pharmaceutical applications leverage them for medication box accuracy, aligning with stringent hygiene standards, while simplifying label roll changes. Manufacturing benefits from multi-shape product labeling, especially in harsh environments that require frequent washdowns, contributing to product tracking in the assembly line.

High-throughput labeling boosts bulk production scalability, eliminating downtime. Specialized applications include extreme temperature resistance for items from furnaces or freezers, plus wet/greasy item transport with rugged belts. These applicators aid inventory control by providing accurate labeling that is necessary for efficient logistics and regulatory compliance. Visualizing:

1. Automated assembly lines in pharmaceuticals.
2. High-speed labeling of food packages.
3. Conveyor systems handling manufactured goods.

Automation Compatibility

Compatibility with automated systems is assured through design features that facilitate incorporation into complex production lines, enabling seamless synchronization and control. Facilitating this integration is support for *PLC interfacing*, which allows control over label printing and application processes when interfaced with overarching production systems. Loose loop label feeders connect to thermal or ink-jet printers for on-demand labeling, enhancing dynamic personalization.

The belt applicator’s design supports *modular integration* into existing OEM machinery for seamless alignment. Label detectors and triggers use photoeyes for precise product detection, ensuring accurate synchronization. Dual automation modes permit scaling from semi-automated processes to full automation where throughput demands. Adjustable labels support widths up to 6.5 inches and lengths up to 12 inches. Diagnostics provide real-time system status and troubleshooting.
